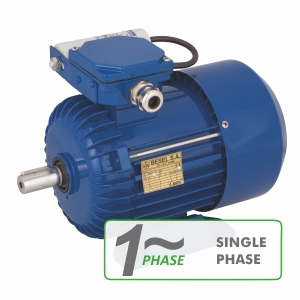

Single-phase general purpose induction motors

CATALOGUE VERSION

Operating duty S1
Rated voltage 230V
Frequency 50Hz
Synchronous speed 3000, 1500 or 1000rpm
Insulation class F
Degree of protection IP54/IP55
Ambient temperature from -15°C up to +40°C
Mounting arrangement IM1001 (IMB3 - on feet)

Motors are manufactured in the whole range (56...90) as:
with standard starting torque
with increased starting torque
with high starting torque

OTHER NON CATALOGUE VERSIONS ARE AVAILABLE ON REQUEST

Symbol Frame size Number of poles Rated output [kW] Rated output [HP] Synchronous speed [rpm] Rated torque [Nm]
Reset
SEh56-2A 56 2 0.09 0.12 3000 0.3
SEh56-2B 56 2 0.12 0.17 3000 0.4
SEh56-2C 56 2 0.18 0.25 3000 0.61
SEMh56-2A 56 2 0.06 0.08 3000 0.21
SEMh56-2B 56 2 0.09 0.12 3000 0.31
SEMh56-2C 56 2 0.12 0.17 3000 0.41
SEh63-2A 63 2 0.18 0.25 3000 0.61
SEh63-2AF 63 2 0.18 0.25 3000 0.61
SEh63-2B 63 2 0.25 0.33 3000 0.84
SEh63-2BF 63 2 0.25 0.33 3000 0.84
SEh63-2C 63 2 0.37 0.50 3000 1.24
SEh63-2CF 63 2 0.37 0.50 3000 1.24
SEMh63-2A 63 2 0.12 0.17 3000 0.41
SEMh63-2B 63 2 0.18 0.25 3000 0.62
SEMh63-2C 63 2 0.25 0.33 3000 0.87
SEh71-2B 71 2 0.55 0.75 3000 1.86
SEh71-2BF 71 2 0.55 0.75 3000 1.86
SEh71-2C 71 2 0.75 1 3000 2.54
SEh71-2CF 71 2 0.75 1 3000 2.54
SEMh71-2A 71 2 0.25 0.33 3000 0.88
SEMh71-2B 71 2 0.37 0.50 3000 1.26
SEMh71-2C 71 2 0.55 0.75 3000 1.89
SEh80-2B 80 2 1.1 1.5 3000 3.78
SEh80-2BF 80 2 1.1 1.5 3000 3.78
SEh80-2C 80 2 1.5 2 3000 5.23
SEh80-2CF 80 2 1.5 2 3000 5.12
SEh80-2D 80 2 2 2.8 3000 6.87
SEMh80-2A 80 2 0.55 0.75 3000 1.89
SEMh80-2B 80 2 0.75 1 3000 2.56
SEMh80-2C 80 2 1.1 1.5 3000 3.75
SEMh80-2D 80 2 1.5 2 3000 5.31
SEh90-2S 90 2 1.5 2 3000 5.12
SEh90-2L 90 2 2 2.8 3000 6.87
SEh90-2SF 90 2 1.5 2 3000 5.12
SEh90-2LF 90 2 2 2.8 3000 6.87
SEMh90-2S 90 2 1.1 1.5 3000 3.81
SEMh90-2L 90 2 1.5 2 3000 5.31
SEh56-4A 56 4 0.06 0.08 1500 0.41
SEh56-4B 56 4 0.09 0.12 1500 0.61
SEh56-4C 56 4 0.12 0.17 1500 0.81
SEMh56-4A 56 4 0.04 0.06 1500 0.28
SEMh56-4B 56 4 0.06 0.08 1500 0.41
SEMh56-4C 56 4 0.09 0.12 1500 0.64
SEh63-4A 63 4 0.12 0.17 1500 0.82
SEh63-4AF 63 4 0.12 0.17 1500 0.82
SEh63-4B 63 4 0.18 0.25 1500 1.23
SEh63-4BF 63 4 0.18 0.25 1500 1.23
SEh63-4C 63 4 0.25 0.33 1500 1.76
SEh63-4CF 63 4 0.25 0.33 1500 1.76
SEMh63-4A 63 4 0.09 0.12 1500 0.63
SEMh63-4B 63 4 0.12 0.17 1500 0.84
SEMh63-4C 63 4 0.18 0.25 1500 1.3
SEh71-4A 71 4 0.25 0.33 1500 1.77
SEh71-4B 71 4 0.37 0.50 1500 2.6
SEh71-4BF 71 4 0.37 0.50 1500 2.6
SEh71-4C 71 4 0.55 0.75 1500 3.89
SEh71-4CF 71 4 0.55 0.75 1500 3.86
SEMh71-4B 71 4 0.25 0.33 1500 1.78
SEMh71-4C 71 4 0.37 0.50 1500 2.68
SEh80-4A 80 4 0.55 0.75 1500 3.81
SEh80-4B 80 4 0.75 1 1500 5.23
SEh80-4BF 80 4 0.75 1 1500 5.23
SEh80-4C 80 4 1.1 1.5 1500 7.67
SEh80-4CF 80 4 1.1 1.5 1500 7.5
SEMh80-4A 80 4 0.37 0.50 1500 2.62
SEMh80-4B 80 4 0.55 0.75 1500 3.86
SEMh80-4C 80 4 0.75 1 1500 5.35
SEh90-4S 90 4 1.1 1.5 1500 7.7
SEh90-4SF 90 4 1.1 1.5 1500 7.5
SEh90-4L 90 4 1.3 1.8 1500 9.1
SEh90-4LF 90 4 1.3 1.8 1500 9.13
SEMh90-4S 90 4 0.75 1 1500 5.19
SEMh90-4L 90 4 1.1 1.5 1500 8.08
