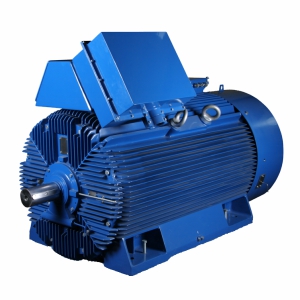

SH series | General purpose "High Efficiency" High Voltage motors

CATALOGUE VERSION

Rated voltage 6000V
Frequency 50Hz
Synchronous speed

3000, 1500, 1000, 750, 600 or 500 rpm
Insulation class F
Degree of protection IP54/IP55
Ambient temperature  from -20°C up to +40°C

OTHER NON CATALOGUE VERSIONS ARE AVAILABLE ON REQUEST

Symbol Frame size Number of poles Rated output [kW] Rated output [HP] Synchronous speed [rpm] Rated torque [Nm]
Reset
Sh355H2A 355 2 160 220 3000 513
Sh355H2B 355 2 200 270 3000 641
Sh355H2C 355 2 250 340 3000 802
Sh355H2D 355 2 315 430 3000 1010
Sh400H2A 400 2 355 480 3000 1137
Sh400H2B 400 2 400 540 3000 1281
Sh400H2C 400 2 450 600 3000 1441
Sh400H2D 400 2 500 680 3000 1601
Sh400H2E 400 2 560 750 3000 1792
Sh450H2B 450 2 630 850 3000 2014
Sh450H2C 450 2 710 950 3000 2270
Sh450H2D 450 2 800 1080 3000 2556
Sh500H2A 500 2 900 1200 3000 2876
Sh500H2B 500 2 1000 1350 3000 3196
Sh500H2C 500 2 1120 1500 3000 3580
Sh500H2D 500 2 1250 1680 3000 3994
Sh560H2A 560 2 1400 1880 3000 4472
Sh560H2B 560 2 1600 2150 3000 5109
Sh560H2C 560 2 1800 2410 3000 5745
Sh355H4A 355 4 160 220 1500 1026
Sh355H4B 355 4 200 270 1500 1284
Sh355H4C 355 4 250 340 1500 1606
Sh355H4D 355 4 315 430 1500 2024
Sh400H4B 400 4 355 480 1500 2276
Sh400H4C 400 4 400 540 1500 2562
Sh400H4D 400 4 450 600 1500 2886
Sh400H4E 400 4 500 680 1500 3207
Sh400H4Em 400 4 560 750 1500 3587
Sh450H4A 450 4 630 850 1500 4030
Sh450H4B 450 4 710 950 1500 4538
Sh450H4C 450 4 800 1080 1500 5117
Sh500H4A 500 4 900 1200 1500 5753
Sh500H4B 500 4 1000 1350 1500 6392
Sh500H4C 500 4 1120 1500 1500 7159
Sh500H4D 500 4 1250 1680 1500 7985
Sh500H4E 500 4 1400 1880 1500 8949
Sh560H4B 560 4 1600 2150 1500 10234
Sh560H4C 560 4 1800 2410 1500 11506
Sh355H6A 355 6 160 220 1000 1540
Sh355H6B 355 6 200 270 1000 1927
Sh355H6C 355 6 250 340 1000 2409
Sh400H6A 400 6 315 430 1000 3029
Sh400H6B 400 6 355 480 1000 3414
Sh400H6C 400 6 400 540 1000 3847
Sh450H6A 450 6 450 600 1000 4332
Sh450H6B 450 6 500 680 1000 4814
Sh450H6C 450 6 560 750 1000 5380
Sh450H6D 450 6 630 850 1000 6053
Sh500H6A 500 6 710 950 1000 6808
Sh500H6B 500 6 800 1080 1000 7678
Sh500H6C 500 6 900 1200 1000 8638
Sh500H6D 500 6 1000 1350 1000 9598
Sh500H6E 500 6 1120 1500 1000 10750
Sh560H6A 560 6 1250 1680 1000 11985
Sh560H6B 560 6 1400 1880 1000 13424
Sh560H6C 560 6 1600 2150 1000 15341
Sh355H8A 355 8 160 220 750 2065
Sh355H8B 355 8 180 240 750 2323
Sh355H8C 355 8 200 270 750 2581
Sh400H8A 400 8 250 340 750 3209
Sh400H8B 400 8 315 430 750 4043
Sh450H8A 450 8 355 480 750 4557
Sh450H8B 450 8 400 540 750 5134
Sh450H8C 450 8 450 600 750 5776
Sh450H8D 450 8 500 680 750 6418
Sh500H8A 500 8 560 750 750 7179
Sh500H8B 500 8 630 850 750 8076
Sh500H8C 500 8 710 950 750 9101
Sh500H8D 500 8 800 1080 750 10241
Sh560H8A 560 8 900 1200 750 11521
Sh560H8B 560 8 1000 1350 750 12802
Sh450H10A 450 10 280 380 600 4502
Sh450H10B 450 10 315 430 600 5064
Sh450H10C 450 10 355 480 600 5707
Sh500H10A 500 10 400 540 600 6453
Sh500H10B 500 10 450 600 600 7259
Sh500H10C 500 10 500 680 600 8066
Sh500H10D 500 10 560 750 600 9018
Sh500H10E 500 10 630 850 600 10129
Sh560H10A 560 10 710 950 600 11434
Sh560H10B 560 10 800 1080 600 12884
Sh500H12A 500 12 315 430 500 6089
Sh500H12B 500 12 355 480 500 6849
Sh500H12C 500 12 400 540 500 7717
Sh500H12D 500 12 450 600 500 8682
Sh500H12E 500 12 500 680 500 9666
