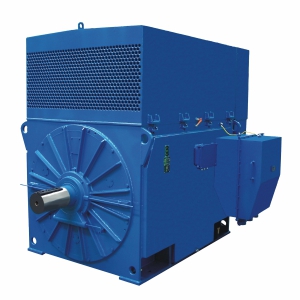

SF series | General purpose "Standard Efficiency" High Voltage motors

CATALOGUE VERSION

Rated voltage 6000V
Frequency 50Hz
Insulation class F
Degree of protection IP54/IP55
Ambient temperature up to +40°C
Synchronous speed

3000, 1500, 1000, 750, 600 or 500 rpm

Welded (steel) housing

OTHER NON CATALOGUE VERSIONS ARE AVAILABLE ON REQUEST


Symbol Frame size Number of poles Rated output [kW] Rated output [HP] Synchronous speed [rpm] Rated torque [Nm]
Reset
Sf315XK2 315 2 160 220 3000 514
Sf315X2 315 2 200 270 3000 643
Sf315Y2 315 2 250 340 3000 804
Sf355Y2B 355 2 315 430 3000 1013
Sf355Y2 355 2 400 540 3000 1284
Sf315XK4 315 4 160 220 1500 1030
Sf315X4 315 4 200 270 1500 1286
Sf315Y4 315 4 250 340 1500 1608
Sf355X4 355 4 315 430 1500 2026
Sf355Y4 355 4 400 540 1500 2571
Sf400X4 400 4 500 750 1500 3211
Sf400Y4 400 4 630 850 1500 4049
Sf450X4 450 4 800 1080 1500 5131
Sf450Y4 450 4 1000 1350 1500 6414
Sf315X6 315 6 160 220 1000 1545
Sf315Y6 315 6 200 270 1000 1931
Sf355X6 355 6 250 340 1000 2414
Sf355Y6 355 6 315 430 1000 3039
Sf400X6 400 6 400 540 1000 3859
Sf400Y6 400 6 500 750 1000 4823
Sf450X6 450 6 630 850 1000 6065
Sf450Y6 450 6 800 1080 1000 7709
Sf355X8 355 8 160 220 750 2062
Sf355Y8 355 8 200 270 750 2578
Sf400X8 400 8 250 340 750 3218
Sf400Y8 400 8 315 430 750 4054
Sf450X8 450 8 400 540 750 5141
Sf450Y8 450 8 500 680 750 6418
Sf450Y8B 450 8 650 870 750 8366
Sf450X10A 450 10 160 220 600 2568
Sf450X10B 450 10 200 270 600 3215
Sf450X10C 450 10 250 340 600 4019
Sf450X10D 450 10 315 430 600 5073
Sf450Y10 450 10 400 540 600 6442
Sf450Y10B 450 10 500 680 600 8052
Sf450X12A 450 12 160 220 500 3087
Sf450X12B 450 12 200 270 500 3866
Sf450X12C 450 12 250 340 500 4833
Sf450Y12 450 12 315 430 500 6090
Sf450Y12B 450 12 400 540 500 7733
SVf355X4A 355 4 160 220 1500 1028
SVf355X4B 355 4 200 270 1500 1286
SVf355X4C 355 4 250 340 1500 1606
SVf355X4 355 4 315 430 1500 2027
SVf355Y4 355 4 400 540 1500 2572
SVf400X4 400 4 500 750 1500 3213
SVf400Y4 400 4 630 850 1500 4051
SVf450X4 450 4 800 1080 1500 5134
SVf450Y4 450 4 1000 1350 1500 6417
SVf355X6A 355 6 160 220 1000 1544
SVf355X6B 355 6 200 270 1000 1928
SVf355X6 355 6 250 340 1000 2415
SVf355Y6 355 6 315 430 1000 3040
SVf400X6 400 6 400 540 1000 3861
SVf400Y6 400 6 500 750 1000 4826
SVf450X6 450 6 630 850 1000 6068
SVf450Y6 450 6 800 1080 1000 7713
SVf355X8 355 8 160 220 750 2063
SVf355Y8 355 8 200 270 750 2579
SVf400X8 400 8 250 340 750 3219
SVf400Y8 400 8 315 430 750 4056
SVf450X8 450 8 400 540 750 5144
SVf450Y8 450 8 500 750 750 6421
SVf450Y8B 450 8 650 870 750 8366
SVf450X10A 450 10 160 220 600 2569
SVf450X10B 450 10 200 270 600 3217
SVf450X10C 450 10 250 340 600 4021
SVf450X10D 450 10 315 430 600 5076
SVf450Y10 450 10 400 540 600 6445
SVf450Y10B 450 10 500 680 600 8052
SVf450X12A 450 12 160 220 500 3087
SVf450X12B 450 12 200 270 500 3866
SVf450X12C 450 12 250 340 500 4833
SVf450Y12 450 12 315 430 500 3089
SVf450Y12B 450 12 400 540 500 7779
Sf355Y2-E 355 2 315 430 3000 1012
Sfw560J2A-G 560 2 1250 1680 3000 3999
Sfw560J2B-G 560 2 1400 1880 3000 4475
Sfw710-2A 710 2 2250 3020 3000 7196
Sfw710-2B 710 2 2500 3350 3000 7990
Sfw710-2C 710 2 2800 3750 3000 8946
Sfw710-2D 710 2 3150 4223 3000 10071
Sf355X4A-E 355 4 200 270 1500 1287
Sf355X4B-E 355 4 250 340 1500 1609
Sf355X4C-E 355 4 315 430 1500 2024
Sf400X4-E 400 4 400 540 1500 2585
Sf400Y4-E 400 4 500 680 1500 3229
Sf450X4-E 450 4 650 870 1500 4183
Sf450Y4-E 450 4 850 1140 1500 5474
Sf560X4-E 560 4 1000 1350 1500 6405
Sf560Y4-E 560 4 1250 1680 1500 8006
Sf560Y4B-E 560 4 1400 1880 1500 8973
Sf560H4-E 560 4 1600 2150 1500 10255
Sf560H4B-E 560 4 1800 2410 1500 11537
Sf560H4C-E 560 4 2000 2680 1500 12802
Sfw710-4A 710 4 2200 2950 1500 14057
Sfw710-4B 710 4 2500 3350 1500 15977
Sfw710-4C 710 4 2800 3750 1500 17894
Sfw710-4D 710 4 3200 4290 1500 20455
Sf315Y6-E 315 6 160 220 1000 1542
Sf355X6-E 355 6 200 270 1000 1939
Sf355Y6-E 355 6 250 340 1000 2424
Sf400X6-E 355 6 315 430 1000 3063
Sf400Y6-E 355 6 400 540 1000 3890
Sf450X6-E 450 6 500 680 1000 4838
Sf450Y6-E 450 6 630 850 1000 6102
Sf560X6-E 560 6 800 1080 1000 7694
Sf560Y6-E 560 6 1000 1350 1000 9617
Sf560H6-E 560 6 1400 1880 1000 13437
Sf560H6B-E 560 6 1500 2011 1000 14397
Sf560H6C-E 560 6 1700 2280 1000 16300
Sf355Y8-EA 355 8 200 220 750 2574
Sf450X8A-E 450 8 200 270 750 2581
Sf450X8B-E 450 8 250 340 750 3231
Sf450X8C-E 450 8 315 430 750 4071
Sf450Y8-E 450 8 400 540 750 5169
Sf560X8-E 560 8 500 680 750 6418
Sf560Y8-E 560 8 630 850 750 8087
Sf560H8-E 560 8 800 1080 750 10241
Sf560H8B-E 560 8 1000 1350 750 12802
Sf560H8C-E 560 8 1250 1680 750 16023
Sf710X8 710 8 1400 1880 750 17922
Sf710X8B 710 8 1600 2150 750 20483
Sf710Y8 710 8 1800 2410 750 23043
Sf710Y8B 710 8 2000 2680 750 25603
Sf710Y8C 710 8 2100 2820 750 26883
Sf560X10-E 560 10 560 750 600 8988
Sf560Y10-E 560 10 630 850 600 10112
Sf560H10-E 560 10 800 1080 600 12819
Sf710X10 710 10 1000 1350 600 16050
Sf710Y10 710 10 1250 1680 600 20029
Sf710Y10B 710 10 1400 1880 600 22471
Sf560X12-E 560 12 560 680 500 10826
Sf560Y12-E 560 12 630 850 500 12179
Sf560H12-E 560 12 800 1080 500 15434
Sf710X12 710 12 1000 1350 500 19254
Sf710Y12 710 12 1250 1680 500 24019
Sf710Y12B 710 12 1350 1810 500 25941
Sf710Y12C 710 12 1450 1940 500 27862
