Electrohydraulic Releases
with external mechanical switch
Application

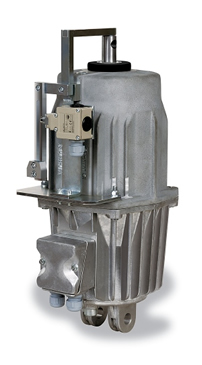

Release type ZE…Cm is provided with external mechanical switch. Depending on position of measuring slide, this switch can signal position of the piston rod in top as well as bottom position.
After agreeing with the producer, signaling of piston rod in other position is also possible.
All releases of ZE series can be provided with mechanical switches.
The release is provided with mechanical switch D4M-5171 of make and break contact system NO/NC.
Electrical parameters of mechanical switch:
After agreeing with the producer, signaling of piston rod in other position is also possible.
All releases of ZE series can be provided with mechanical switches.
The release is provided with mechanical switch D4M-5171 of make and break contact system NO/NC.
Electrical parameters of mechanical switch:
AC-15 6A/230V 4A/400V – 3A/500V
DC-13 6A/24V 0,4A/250V
