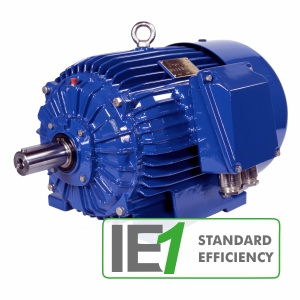

2Sg Sg Sh serie | Motori elettrici trifase "IE1 Standard Efficiency"

VERSIONE DI CATALOGO

Efficienza IE1
Servizio S1
Voltaggio 400V
Frequenza 50Hz
Velocità 3000, 1500 or 1000rpm
Classe di isolamento F
Grado di protezione IP55
Temperatura ambiente up to +40°C
Forma di montaggio IM1001 (IMB3)

ALTRE VERSIONI FUORI CATALOGO SONO DISPONIBILI A RICHIESTA

Tipo Altezza d'asse Poli Potenza [kW] Potenza [HP] Giri [rpm] Coppia nominale [Nm]
Reset
SIE200L2A-K 200 2 30 40 3000 97
SIE200L2B-K 200 2 37 50 3000 119
SIE200L2Bz-K 200 2 45 60 3000 145
SIE200L4-K 200 4 30 40 1500 195
SIE200L4Az-K 200 4 37 50 1500 241
SIE200L4Bz-K 200 4 45 60 1500 291
SIE200L6A-K 200 6 18.5 25 1000 180
SIE200L6B-K 200 6 22 30 1000 214
SIE200L6Bz-K 200 6 30 40 1000 294
SIE200L8-K 200 8 15 20 750 195
SIE200L8z-K 200 8 18.5 25 750 242
SIE225M2-K 225 2 45 60 3000 145
SIE225M2z-K 225 2 55 75 3000 177
SIE225M4-K 225 4 45 60 1500 290
SIE225M4z-K 225 4 55 75 1500 356
SIE225M6-K 225 6 30 40 1000 292
SIE225M6Az-K 225 6 37 50 1000 360
SIE225M6Bz-K 225 6 45 60 1000 439
SIE225M8-K 225 8 22 30 750 286
SIE225M8z-K 225 8 30 40 750 389
SIE225S4-K 225 4 37 50 1500 240
SIE225S8-K 225 8 18.5 25 750 240
2Sg250M2 250 2 55 75 3000 177
2Sg250M2z 250 2 75 100 3000 241
2Sg250M4 250 4 55 75 1500 354
2Sg250M4z 250 4 75 100 1500 486
2Sg250M6 250 6 37 50 1000 359
2Sg250M6Az 250 6 45 60 1000 436
2Sg250M6Bz 250 6 55 75 1000 533
2Sg250M8 250 8 30 40 750 388
2Sg250M8z 250 8 37 50 750 481
2Sg280M2 280 2 90 125 3000 289
2Sg280M2z 280 2 110 150 3000 353
2Sg280M4 280 4 90 125 1500 579
2Sg280M4z 280 4 110 150 1500 710
2Sg280M6 280 6 55 75 1000 533
2Sg280M6z 280 6 75 100 1000 727
2Sg280M8 280 8 45 60 750 583
2Sg280M8z 280 8 55 75 750 715
2Sg280S2 280 2 75 100 3000 241
2Sg280S4 280 4 75 100 1500 482
2Sg280S6 280 6 45 60 1000 436
2Sg280S8 280 8 37 50 750 479
2Sg315M2A 315 2 132 175 3000 424
2Sg315M2B 315 2 160 220 3000 514
2Sg315M4A 315 4 132 175 1500 848
2Sg315M4B 315 4 160 220 1500 1026
2Sg315M6A 315 6 90 125 1000 873
2Sg315M6B 315 6 110 150 1000 1066
2Sg315M6Bz 315 6 132 180 1000 1280
2Sg315M8A 315 8 75 100 750 972
2Sg315M8B 315 8 90 125 750 1166
2Sg315M8Bz 315 8 110 150 750 1420
2Sg315S2 315 2 110 150 3000 353
2Sg315S4 315 4 110 150 1500 710
2Sg315S6 315 6 75 100 1000 727
2Sg315S8 315 8 55 75 750 715
PSg100L-2 100 2 4.0 5.5 3000 13.24
PSg100L-4 100 4 4.0 5.5 1500 27.0
PSg100L-6 100 6 1.8 2.4 1000 18.59
PSg100L-6A 100 6 2.2 3.0 1000 22.71
PSg112M-2 112 2 5.5 7.5 3000 18.17
PSg112M-2A 112 2 6.0 8.1 3000 19.83
PSg112M-2B 112 2 7.5 10 3000 24.87
PSg112M-4A 112 4 5.5 7.5 1500 36.86
PSg112M-6 112 6 3.0 4.0 1000 30.64
PSg132M-2 132 2 9.2 12.4 3000 30.9
PSg132M-2A 132 2 11 15 3000 35.98
PSg132M-4 132 4 9.2 12.4 1500 60.38
PSg132M-4A 132 4 11 15 1500 72.45
PSg132M-6 132 6 7.5 10 1000 75.4
PSg132M-8 132 8 4.0 5.5 750 54.57
PSg132S-2 132 2 11 15 3000 35.98
PSg160L-2 160 2 22 30 3000 71.71
PSg160L-4 160 4 18.5 25 1500 121.43
PSg160L-6 160 6 15 20 1000 150.79
PSg180L-2 180 2 30 40 3000 97.45
PSg180L-4 180 4 30 40 1500 195.56
PSg180L-6 180 6 18.5 25 1000 182.14
PSh90L-2 90 2 3.0 4.0 3000 10.7
PSh90L-4 90 4 2.2 3.0 1500 14.9
PSh90L-6 90 6 1.5 2.0 1000 16.1
Sg100L-2 100 2 3.0 4.0 3000 9.86
Sg100L-4A 100 4 2.2 3.0 1500 14.74
Sg100L-4B 100 4 3.0 4.0 1500 20.25
Sg100L-6 100 6 1.5 2.0 1000 15.16
Sg100L-8A 100 8 0.75 1.0 750 10.09
Sg100L-8B 100 8 1.1 1.5 750 14.9
Sg112M-2 112 2 4.0 5.5 3000 13.33
Sg112M-4 112 4 4.0 5.5 1500 26.62
Sg112M-6 112 6 2.2 3.0 1000 21.88
Sg112M-8 112 8 1.5 2.0 750 19.89
Sg132M-4 132 4 7.5 10 1500 49.4
Sg132M-6A 132 6 4.0 5.5 1000 40.2
Sg132M-6B 132 6 5.5 7.5 1000 55.3
Sg132M-8 132 8 3.0 4.0 750 40.35
Sg132S-2A 132 2 5.5 7.5 3000 18.05
Sg132S-2B 132 2 7.5 10 3000 24.5
Sg132S-4 132 4 5.5 7.5 1500 36.22
Sg132S-6 132 6 3.0 4.0 1000 30.16
Sg132S-8 132 8 2.2 3.0 750 29.6
Sg160L-2 160 2 18.5 25 3000 60.3
Sg160L-4 160 4 15 20 1500 98.12
Sg160L-6 160 6 11 15 1000 109.4
Sg160L-8 160 8 7.5 10 750 101.6
Sg160M-2A 160 2 11 15 3000 35.67
Sg160M-2B 160 2 15 20 3000 48.81
Sg160M-4 160 4 11 15 1500 71.95
Sg160M-6 160 6 7.5 10 1000 74.6
Sg160M-8A 160 8 4.0 5.5 750 54.2
Sg160M-8B 160 8 5.5 7.5 750 74
Sg180L-4 180 4 22 30 1500 143.41
Sg180L-6 180 6 15 20 1000 146.92
Sg180L-8 180 8 11 15 750 143.9
Sg180M-2 180 2 22 30 3000 71.95
Sg180M-4 180 4 18.5 25 1500 120.19
Sh56-2A 56 2 0.09 0.12 3000 0.30
Sh56-2B 56 2 0.12 0.17 3000 0.41
Sh56-4A 56 4 0.06 0.08 1500 0.41
Sh56-4B 56 4 0.09 0.12 1500 0.62
Sh56-6B 56 6 0.06 0.08 1000 0.66
Sh56X-2C 56 2 0.18 0.25 3000 0.60
Sh56X-4C 56 4 0.12 0.17 1500 0.82
Sh63-2A 63 2 0.18 0.25 3000 0.62
Sh63-2B 63 2 0.25 0.33 3000 0.85
Sh63-4A 63 4 0.12 0.17 1500 0.83
Sh63-4B 63 4 0.18 0.25 1500 1.25
Sh63-6A 63 6 0.09 0.12 1000 0.99
Sh63-6B 63 6 0.12 0.17 1000 1.32
Sh63-8A 63 8 0.04 0.06 750 0.57
Sh63-8B 63 8 0.06 0.08 750 0.86
Sh63X-2C 63 2 0.37 0.50 3000 1.25
Sh63X-4C 63 4 0.25 0.33 1500 1.72
Sh63X-6C 63 6 0.15 0.20 1000 1.65
Sh63X-8C 63 8 0.075 0.11 750 1.10
Sh71-2A 71 2 0.37 0.50 3000 1.26
Sh71-2B 71 2 0.55 0.75 3000 1.88
Sh71-4A 71 4 0.25 0.33 1500 1.73
Sh71-4B 71 4 0.37 0.50 1500 2.58
Sh71-6A 71 6 0.18 0.25 1000 1.93
Sh71-6B 71 6 0.25 0.33 1000 2.77
Sh71-8A 71 8 0.09 0.12 750 1.26
Sh71-8B 71 8 0.12 0.17 750 1.71
Sh71X-4C 71 4 0.55 0.75 1500 3.86
Sh71X-6C 71 6 0.37 0.50 1000 4.01
Sh71X-8C 71 8 0.18 0.25 750 2.53
Sh80-2A 80 2 0.75 1.0 3000 2.56
Sh80-2B 80 2 1.1 1.5 3000 3.78
Sh80-4A 80 4 0.55 0.75 1500 3.80
Sh80-4B 80 4 0.75 1.0 1500 5.19
Sh80-6A 80 6 0.37 0.50 1000 3.88
Sh80-6B 80 6 0.55 0.75 1000 5.84
Sh80-8A 80 8 0.18 0.25 750 2.29
Sh80-8B 80 8 0.25 0.33 750 3.51
Sh80X-8C 80 8 0.37 0.50 750 5.20
Sh80X-8D 80 8 0.55 0.75 750 7.61
Sh90L-2 90 2 2.2 3.0 3000 7.36
Sh90L-4 90 4 1.5 2.0 1500 10.16
Sh90L-6 90 6 1.1 1.5 1000 11.42
Sh90L-8 90 8 0.55 0.75 750 7.78
Sh90S-2 90 2 1.5 2.0 3000 5.05
Sh90S-4 90 4 1.1 1.5 1500 7.48
Sh90S-6 90 6 0.75 1.0 1000 7.83
Sh90S-8 90 8 0.37 0.50 750 5.09
