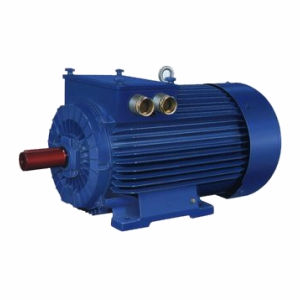

Seria SUg-SUem | Trójfazowe silniki z wirnikiem pierścieniowym do pracy przerywanej

Jednobiegowe silniki pierścieniowe do napędu mechanizmów dźwignic przemysłowych

WYKONANIE PODSTAWOWE:

Praca przerywana S3 (25%, 40%, 60%, 100%)
Napięcie zasilania 400V lub 380V
Częstotliwość zasilania 50Hz
Prędkości obrotowe 3000, 1500 lub 1000 obr/min
Klasa izolacji na stojanie i wirniku F
Stopień ochrony IP44/IP54/IP55
Temperatura otoczenia do +40°C
Forma wykonania IM1001 (IMB3 - na łapach)

INNE WYKONANIA ZGODNIE Z ŻYCZENIEM KLIENTA UZGODNIONE Z PRODUCENTEM

Symbol Wielkość mechaniczna Ilość biegunów Moc znamionowa [kW] Moc znamionowa [HP] Prędkość synchroniczna [obr/min] Moment znamionowy [Nm]
Resetuj
SUDf100L-4A(S3-40%) 100 4 1.3 1.8 1500 9.5
SUDf100L-4B(S3-40%) 100 4 1.7 2.3 1500 12.4
SUDf112M-4A(S3-40%) 112 4 3 4 1500 20.6
SUDf112M-4B(S3-40%) 112 4 4 5.5 1500 27.1
SUDg132M-4A(S3-40%) 132 4 6.3 8.5 1500 42.9
SUDg132M-4B(S3-40%) 132 4 7.5 10 1500 50.8
SUDg160M-4(S3-40%) 160 4 10 13.4 1500 67.2
SUDg160L-4(S3-40%) 160 4 14.5 19.5 1500 97
SUDg180L-4(S3-40%) 180 4 19.5 26.3 1500 130
SUDf100L-6A(S3-40%) 100 6 1.1 1.5 1000 12.3
SUDf100L-6B(S3-40%) 100 6 1.5 2 1000 16.6
SUDf112M-6A(S3-40%) 112 6 2 2.7 1000 21
SUDf112M-6B(S3-40%) 112 6 3 4 1000 30.8
SUDg132M-6A(S3-40%) 132 6 4.5 6.1 1000 46.6
SUDg132M-6B(S3-40%) 132 6 5.5 7.5 1000 55.6
SUDg160M-6(S3-40%) 160 6 7 9.5 1000 71.1
SUDg160L-6(S3-40%) 160 6 10 13.4 1000 102
SUDg180L-6(S3-40%) 180 6 14.5 19.5 1000 145
SUDg132M-8A(S3-40%) 132 8 3 4 750 42.1
SUDg132M-8B(S3-40%) 132 8 4 5.5 750 55.8
SUDg160M-8(S3-40%) 160 8 5.5 7.5 750 76.7
SUDg160L-8(S3-40%) 160 8 7 9.5 750 96.9
SUDg180L-8(S3-40%) 180 8 10 13.4 750 134
2SUDg200L6(S3-25%) 200 6 23 31 1000 232
2SUDg200L6(S3-40%) 200 6 20 27 1000 200
2SUDg200L6(S3-60%) 200 6 17.5 24 1000 174
2SUDg200L6(S3-100%) 200 6 15 20 1000 148
2SUDg225M6A(S3-25%) 225 6 28 38 1000 278
2SUDg225M6A(S3-40%) 225 6 25 34 1000 247
2SUDg225M6A(S3-60%) 225 6 22 30 1000 217
2SUDg225M6A(S3-100%) 225 6 18.5 25 1000 181
2SUDg225M6B(S3-25%) 225 6 34 46 1000 339
2SUDg225M6B(S3-40%) 225 6 30 41 1000 297
2SUDg225M6B(S3-60%) 225 6 26 35 1000 256
2SUDg225M6B(S3-100%) 225 6 22 30 1000 216
2SUDg250M6A(S3-25%) 250 6 42 57 1000 413
2SUDg250M6A(S3-40%) 250 6 37 50 1000 363
2SUDg250M6A(S3-60%) 250 6 32 43 1000 312
2SUDg250M6A(S3-100%) 250 6 27 37 1000 263
2SUDg250M6B(S3-25%) 250 6 52 71 1000 511
2SUDg250M6B(S3-40%) 250 6 45 61 1000 441
2SUDg250M6B(S3-60%) 250 6 39 53 1000 381
2SUDg250M6B(S3-100%) 250 6 34 46 1000 331
2SUDg280S6(S3-25%) 280 6 70 95 1000 692
2SUDg280S6(S3-40%) 280 6 60 82 1000 590
2SUDg280S6(S3-60%) 280 6 52 71 1000 509
2SUDg280S6(S3-100%) 280 6 45 61 1000 439
2SUDg280M6(S3-25%) 280 6 85 116 1000 835
2SUDg280M6(S3-40%) 280 6 75 102 1000 736
2SUDg280M6(S3-60%) 280 6 64 87 1000 625
2SUDg280M6(S3-100%) 280 6 55 75 1000 535
2SUDg200L8(S3-25%) 200 8 16.5 22.5 750 224
2SUDg200L8(S3-40%) 200 8 14.5 19.5 750 195
2SUDg200L8(S3-60%) 200 8 12.5 17 750 167
2SUDg200L8(S3-100%) 200 8 11 15 750 146
2SUDg225M8A(S3-25%) 225 8 23 31 750 309
2SUDg225M8A(S3-40%) 225 8 20 27 750 266
2SUDg225M8A(S3-60%) 225 8 17 23 750 225
2SUDg225M8A(S3-100%) 225 8 15 20 750 198
2SUDg225M8B(S3-25%) 225 8 28 38 750 375
2SUDg225M8B(S3-40%) 225 8 25 34 750 333
2SUDg225M8B(S3-60%) 225 8 22 30 750 291
2SUDg225M8B(S3-100%) 225 8 18.5 25 750 243
2SUDg250M8A(S3-25%) 250 8 34 46 750 447
2SUDg250M8A(S3-40%) 250 8 30 41 750 393
2SUDg250M8A(S3-60%) 250 8 26 35 750 339
2SUDg250M8A(S3-100%) 250 8 22 30 750 286
2SUDg250M8B(S3-25%) 250 8 42 57 750 550
2SUDg250M8B(S3-40%) 250 8 37 50 750 482
2SUDg250M8B(S3-60%) 250 8 32 43 750 415
2SUDg250M8B(S3-100%) 250 8 27 37 750 349
2SUDg280S8(S3-25%) 280 8 57 77 750 752
2SUDg280S8(S3-40%) 280 8 50 68 750 655
2SUDg280S8(S3-60%) 280 8 44 60 750 573
2SUDg280S8(S3-100%) 280 8 37 50 750 481
2SUDg280M8(S3-25%) 280 8 73 99 750 960
2SUDg280M8(S3-40%) 280 8 63 88 750 825
2SUDg280M8(S3-60%) 280 8 55 75 750 718
